How to configure Azure Enterprise App for SSO

Configuration for Single Sign On on Azure

For Single Sign On (SSO), first, we need to configure an enterprise application in Azure.

Steps to create an Azure Application:

➡️  Step 1: Log in to the Azure portal

➡️  Step 2: Go to the Microsoft Entra Admin Portal and complete the following steps:

1. Click on 'Admin' on the side panel
2. Click on 'Show All'
3. Then click on 'Identity'

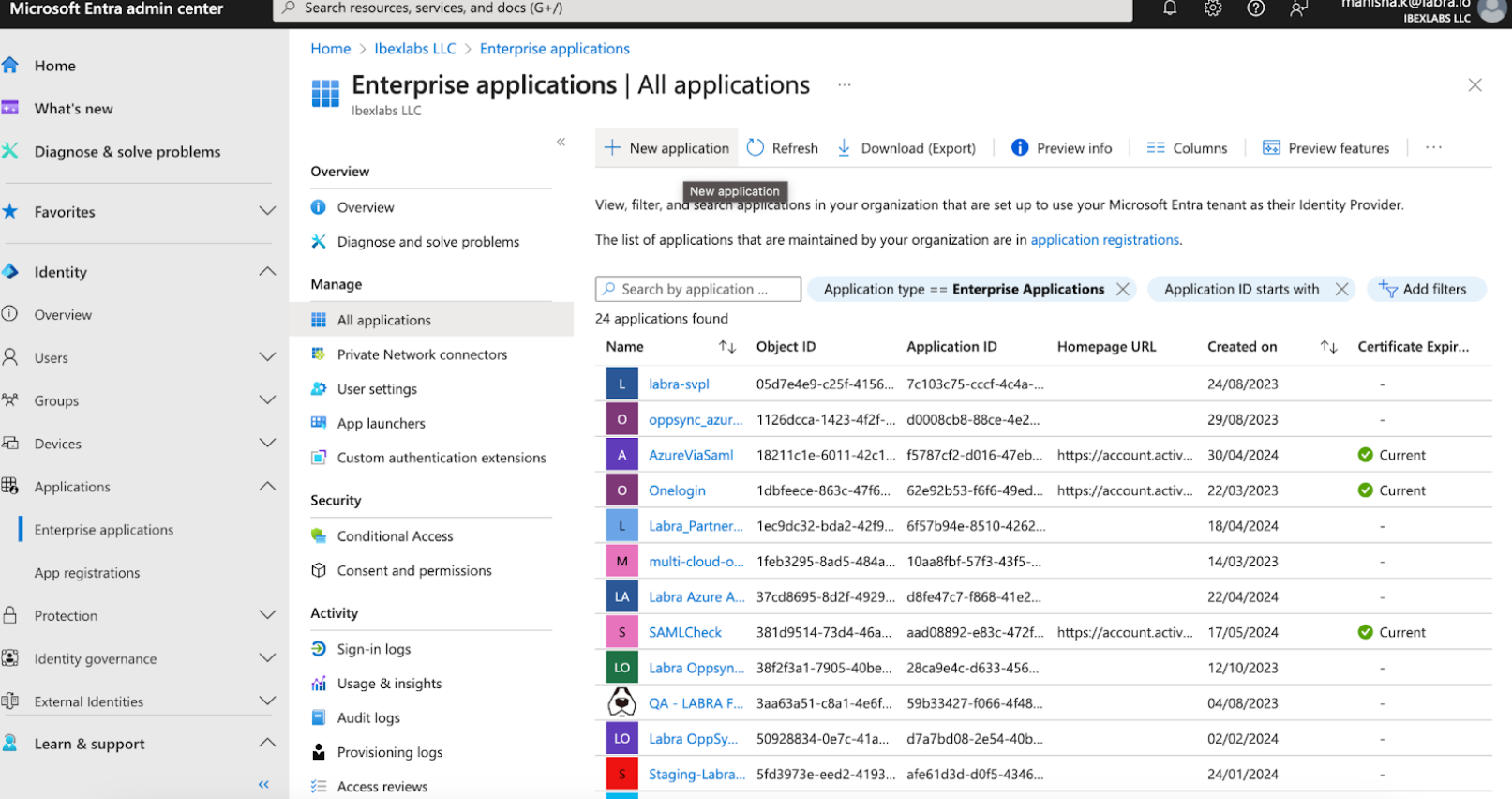

➡️  Step 3: Open the Enterprise App through the side panel.

Fig. 1

➡️  Step 4: Click on 'New application' as shown above in Fig. 1.

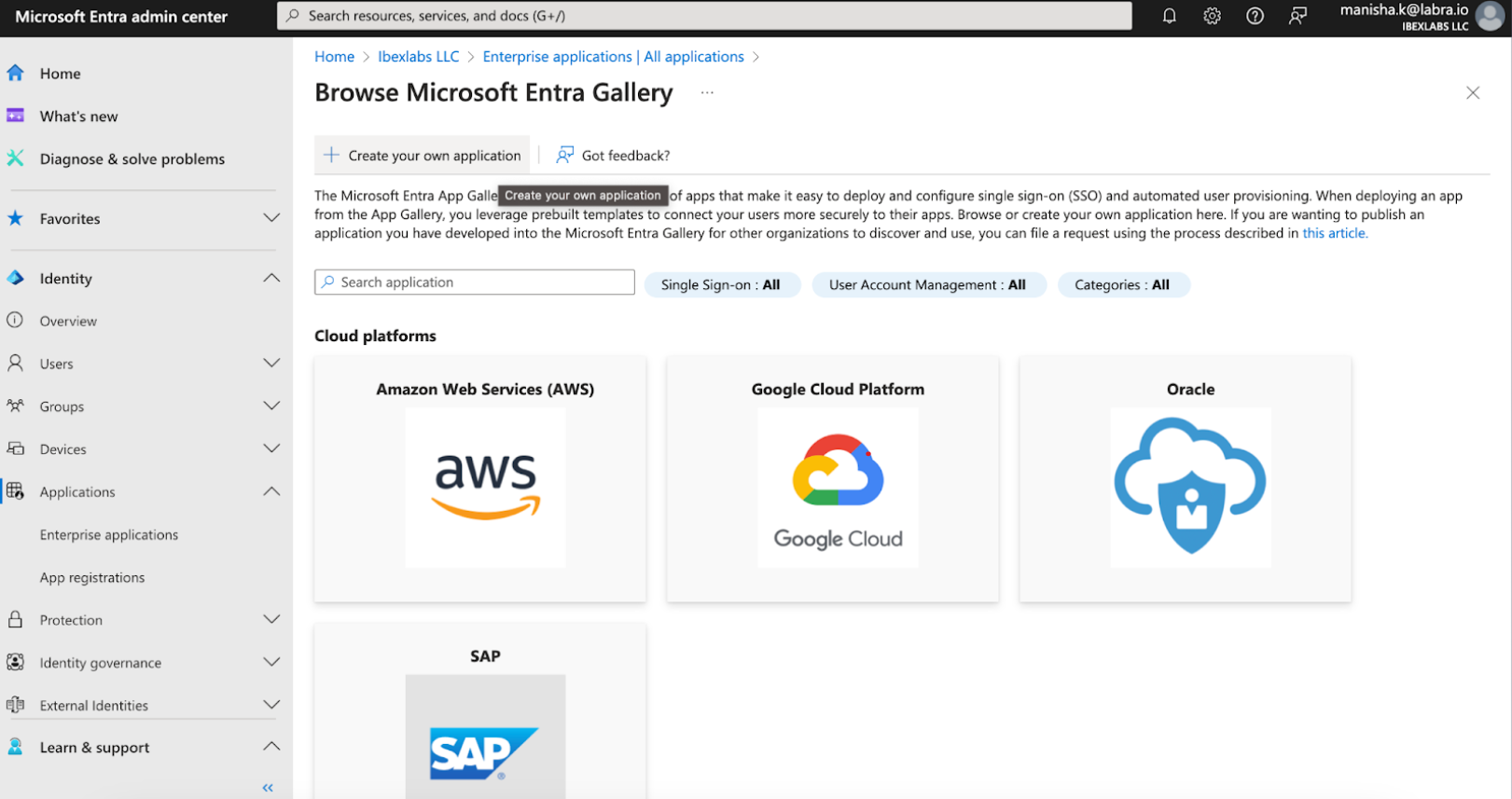

➡️  Step 5: Click on 'Create your own application' as shown in Fig. 2.

Fig. 2

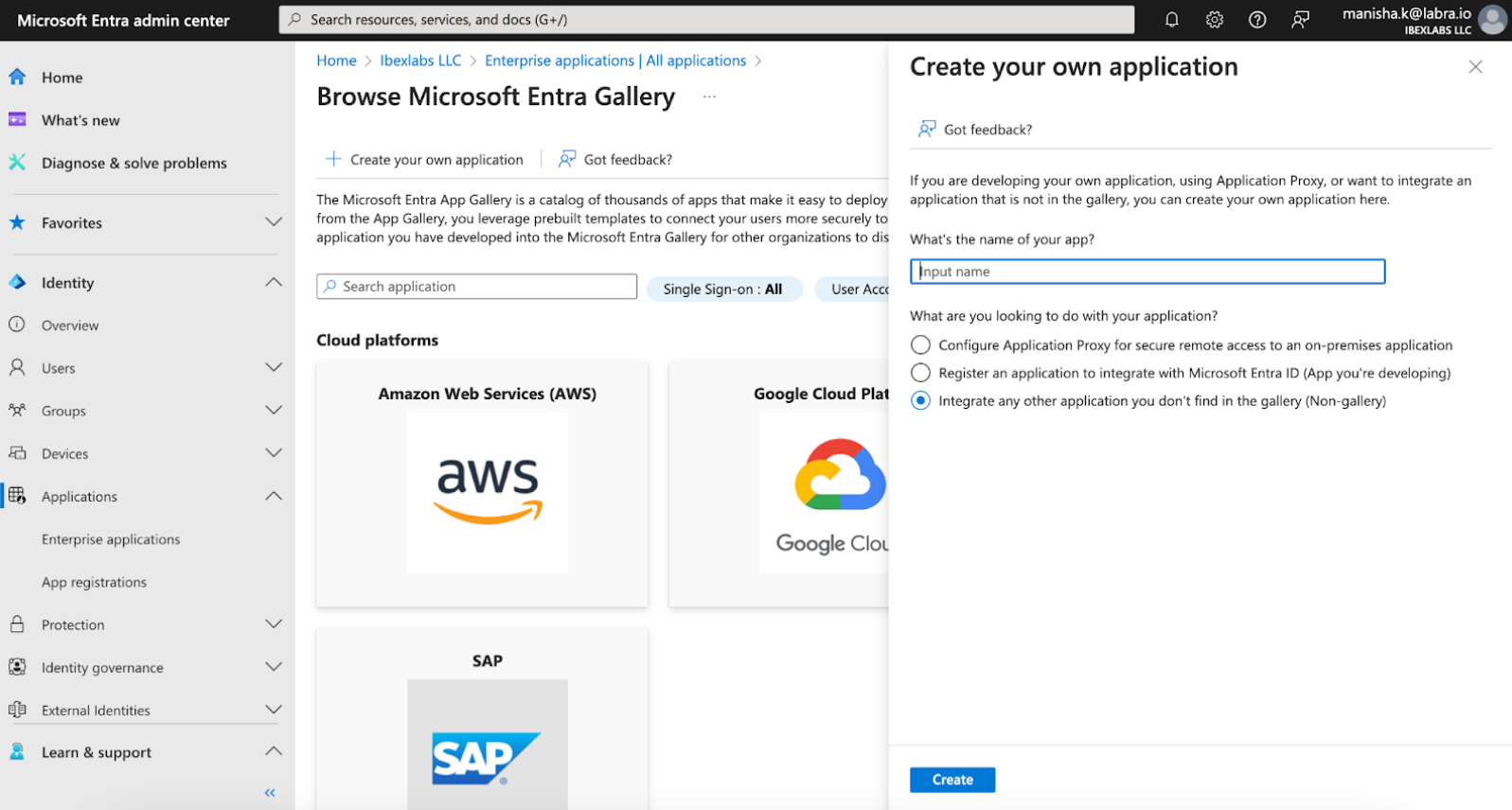

➡️  Step 6: Give the name as <company_Name> in the text field provided, select the last option, and click on the 'Create Button'.

Eg. Labra

Fig. 3

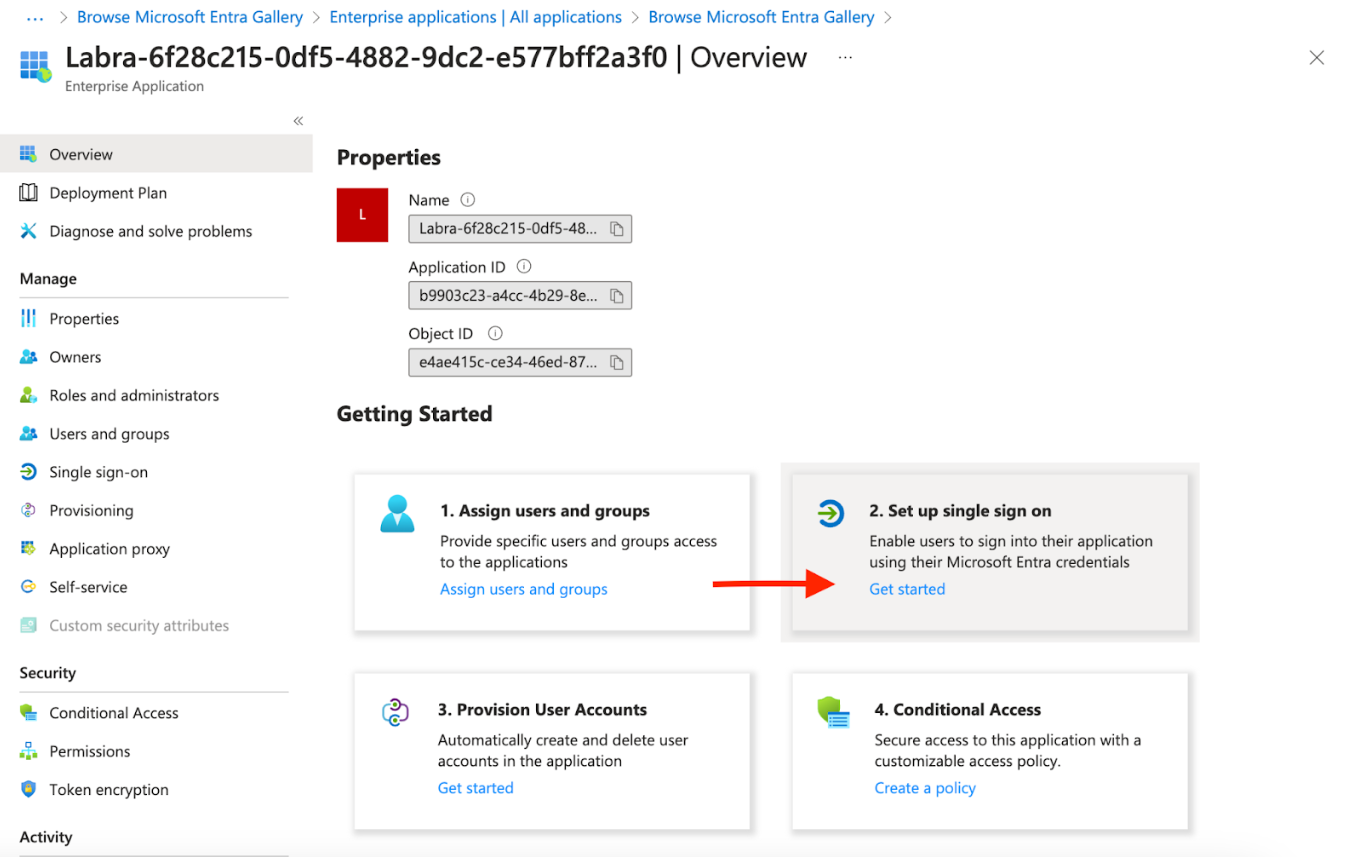

➡️  Step 7: In 'Getting Started', click on 'Set up single sign on'.

Fig. 4

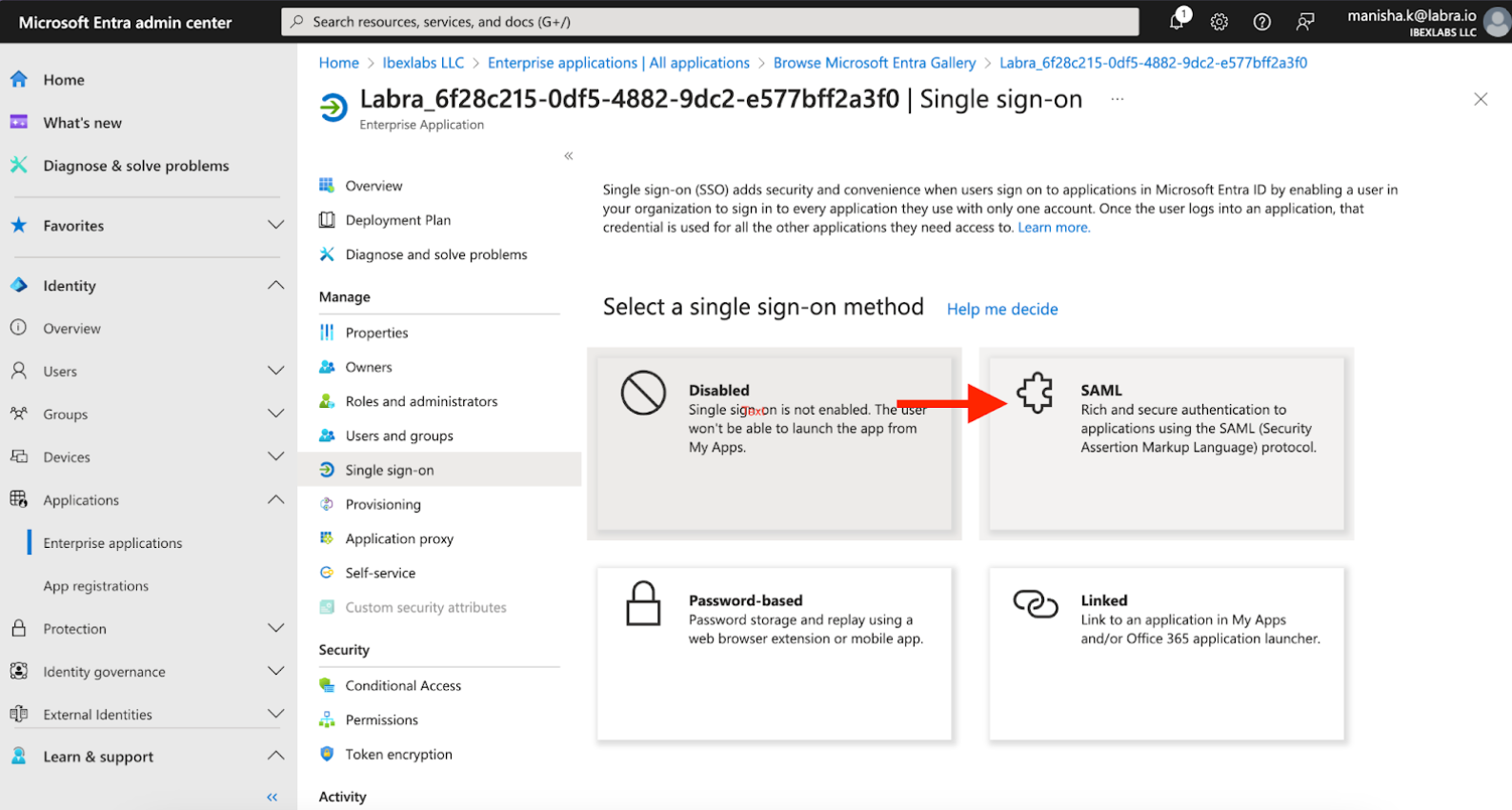

➡️  Step 8: Next, click on 'SAML'.

Fig. 5

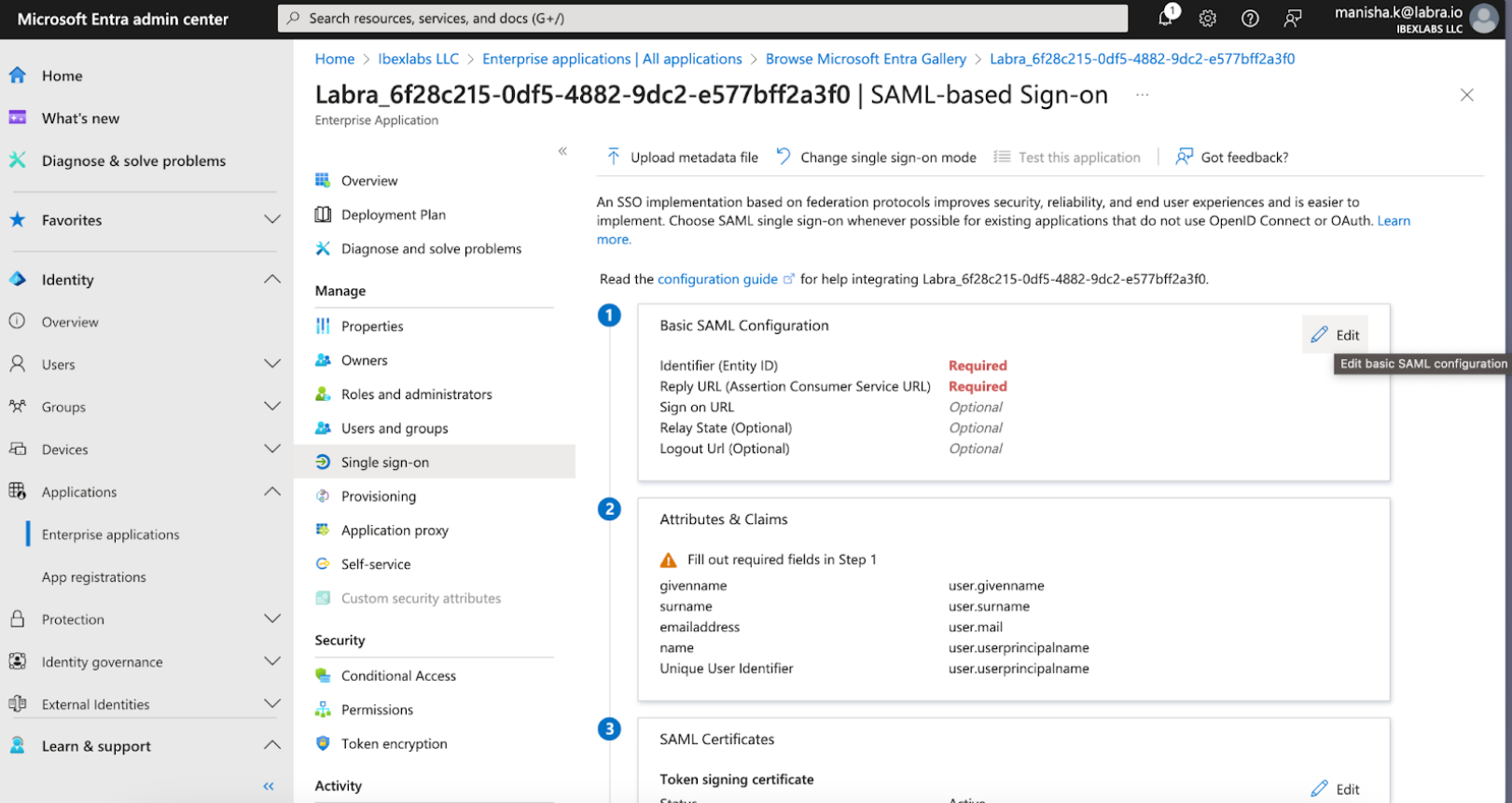

➡️  Step 9: Click on 'Edit on Basic SAML Configuration'.

Fig. 6

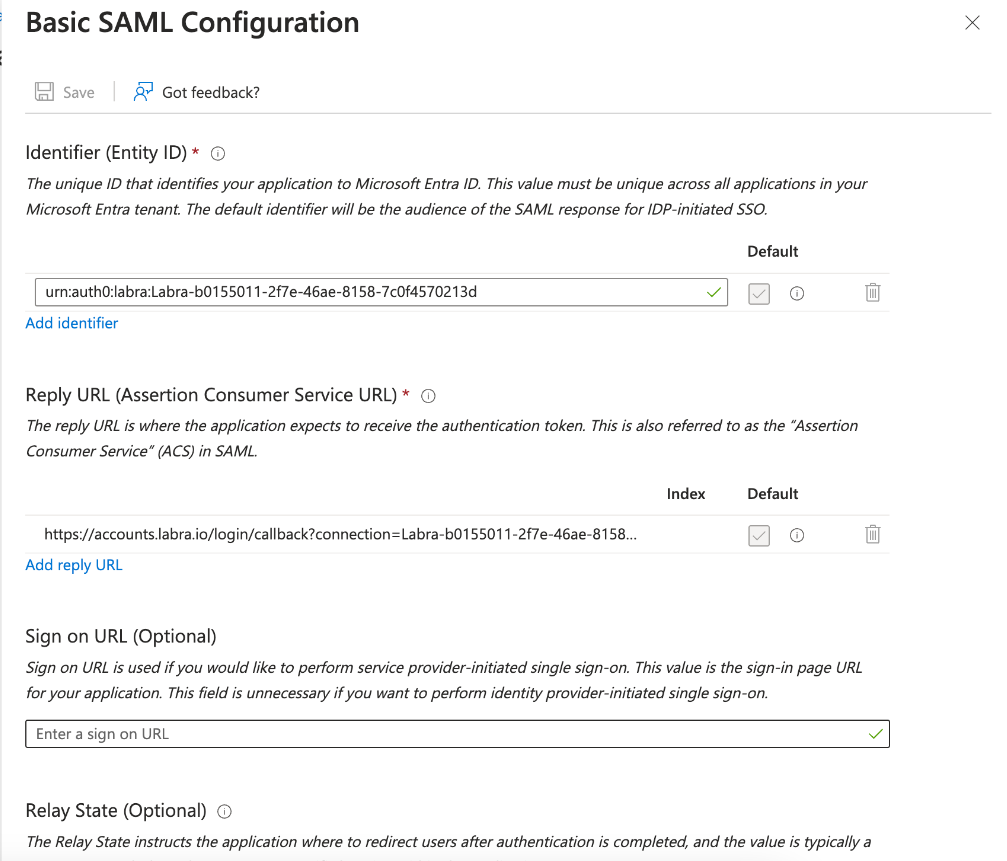

➡️  Step 10: Enter Identifier (Entity ID) in the format: urn:auth0:labra:<connection_name>

and Reply URL (Assertion Consumer Service URL) as https://labra.us.auth0.com/login/callback?connection=<connection_name>

connection_name is of the format → <company_name>-<partner_id>

Here, the partner_id will be provided by Labra, once we create the partner in our database and the Company Name should be the same as what you gave us.

• Example for Entity ID - urn:auth0:labra:Labra-6f28c215-0df5-4882-9dc2-e577bff2a3f0
• Example for Reply URL - https://accounts.labra.io/login/callback?connection=Labra-6f28c215-0df5-4882-9dc2-e577bff2a3f0



Fig. 7

➡️  Step 11: Click on the 'Save' button.

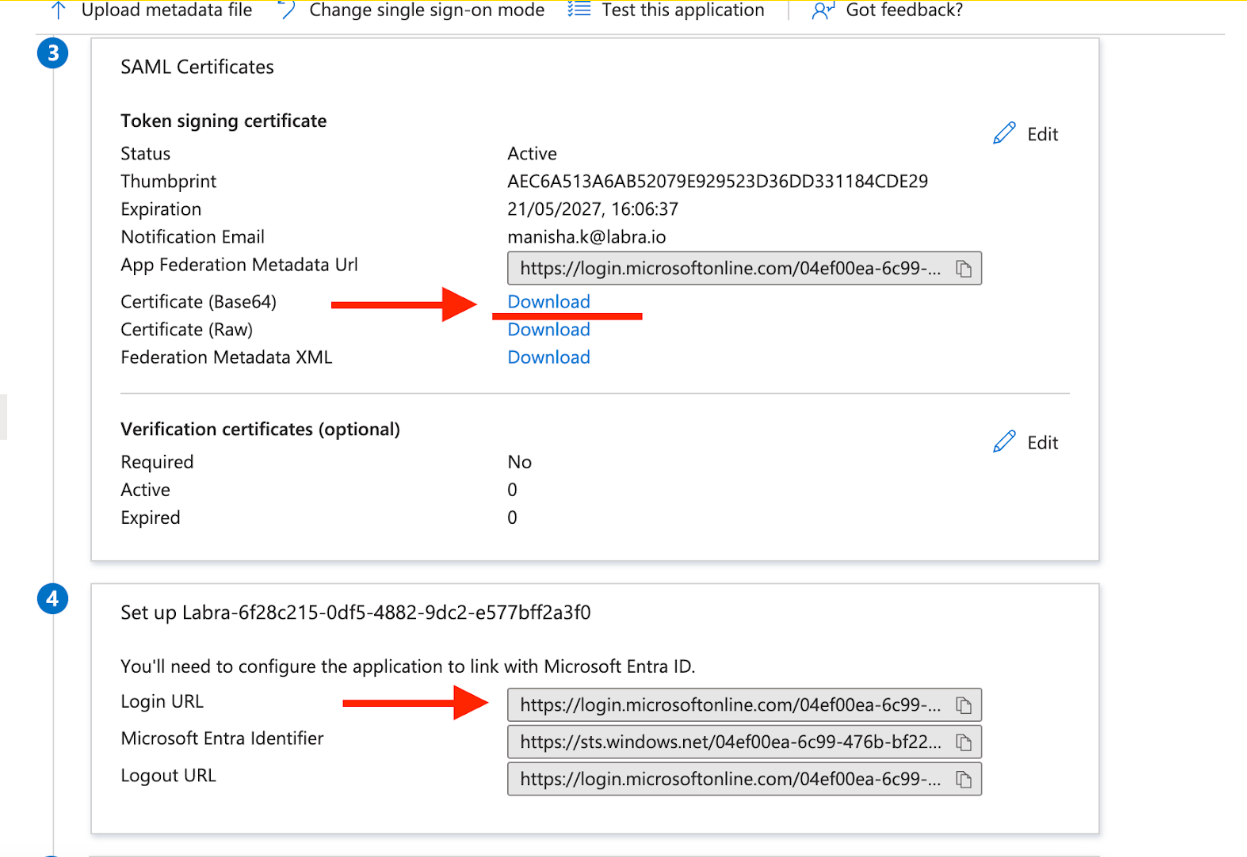

➡️  Step 12: On Certificate (Base64), click on 'Download' and save it.

Fig. 8

➡️  Step 13: Also, copy the Login URL and save it as shown in Fig. 8.

➡️  Step 14: Everything should be as it is. Do not change any attributes or anything.

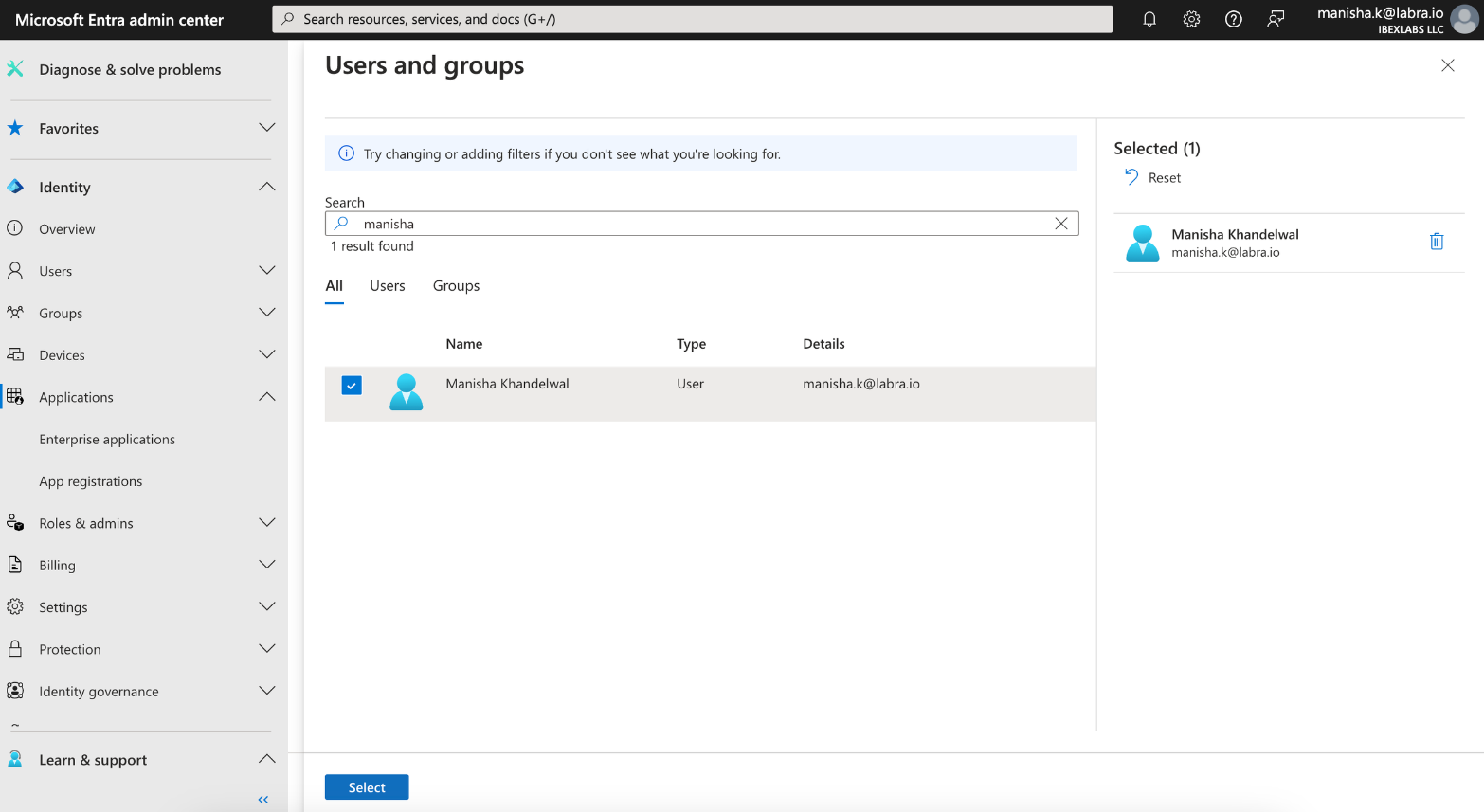

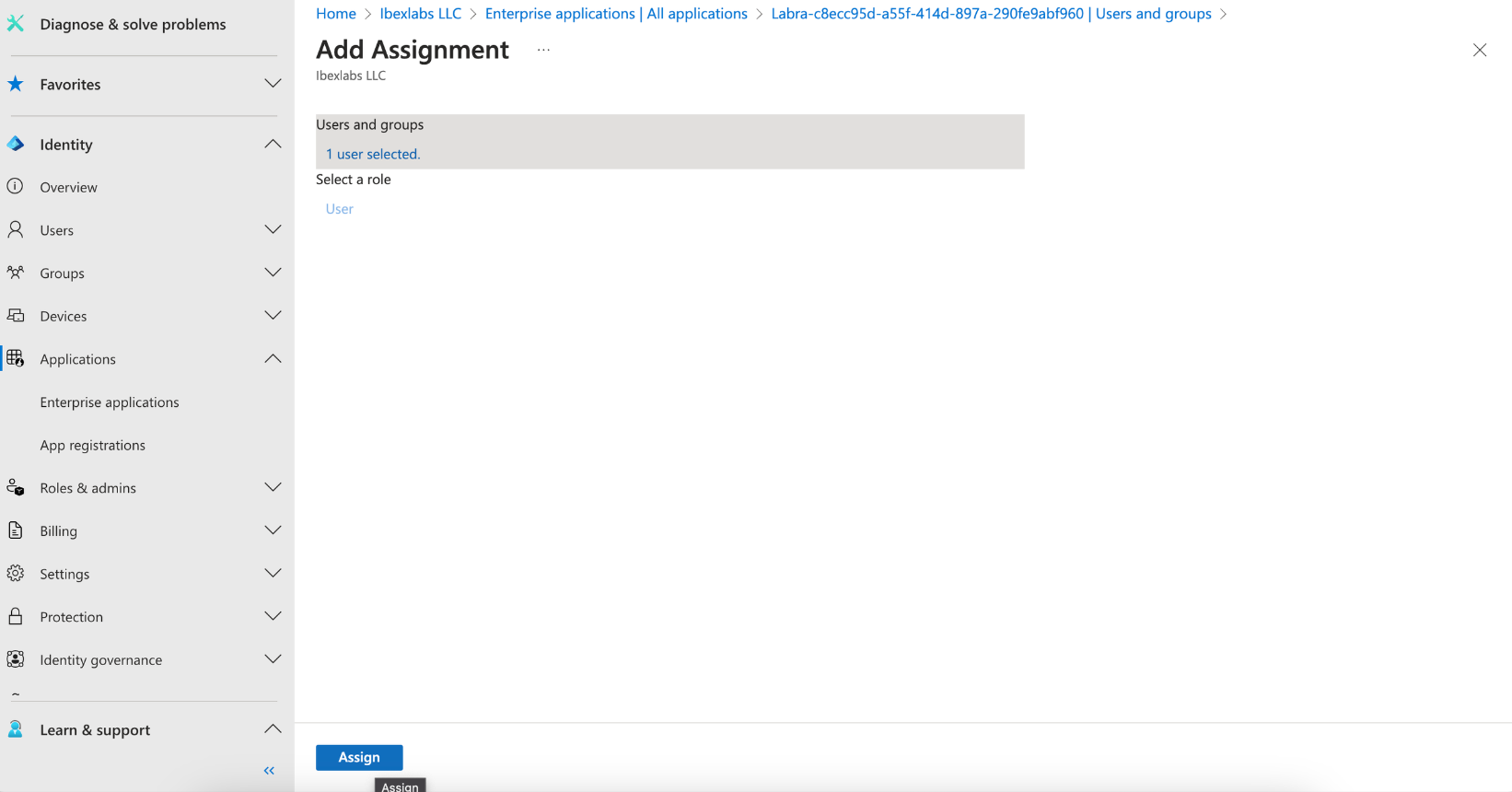

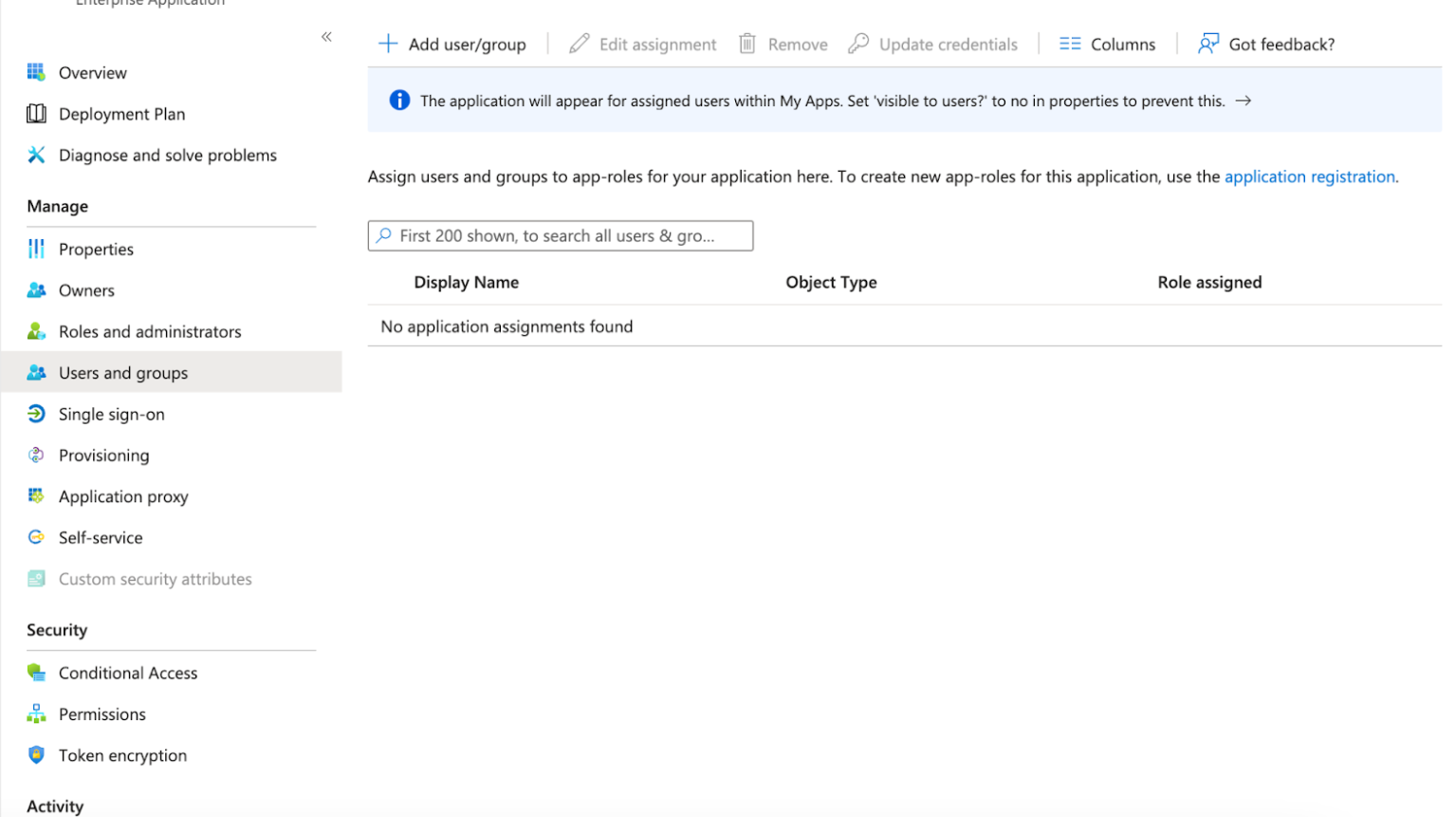

➡️  Step 15: Then Add users to the application. This can be done by:

Clicking on 'Users and groups' on the side panel → Click on 'Add user/group' → Click on 'None Selected' → Search for the user name by typing or you can add a group → Click on the checkbox → Click on 'Select' button → Click on 'Assign'.

Fig. 9

Fig. 10

Fig. 11

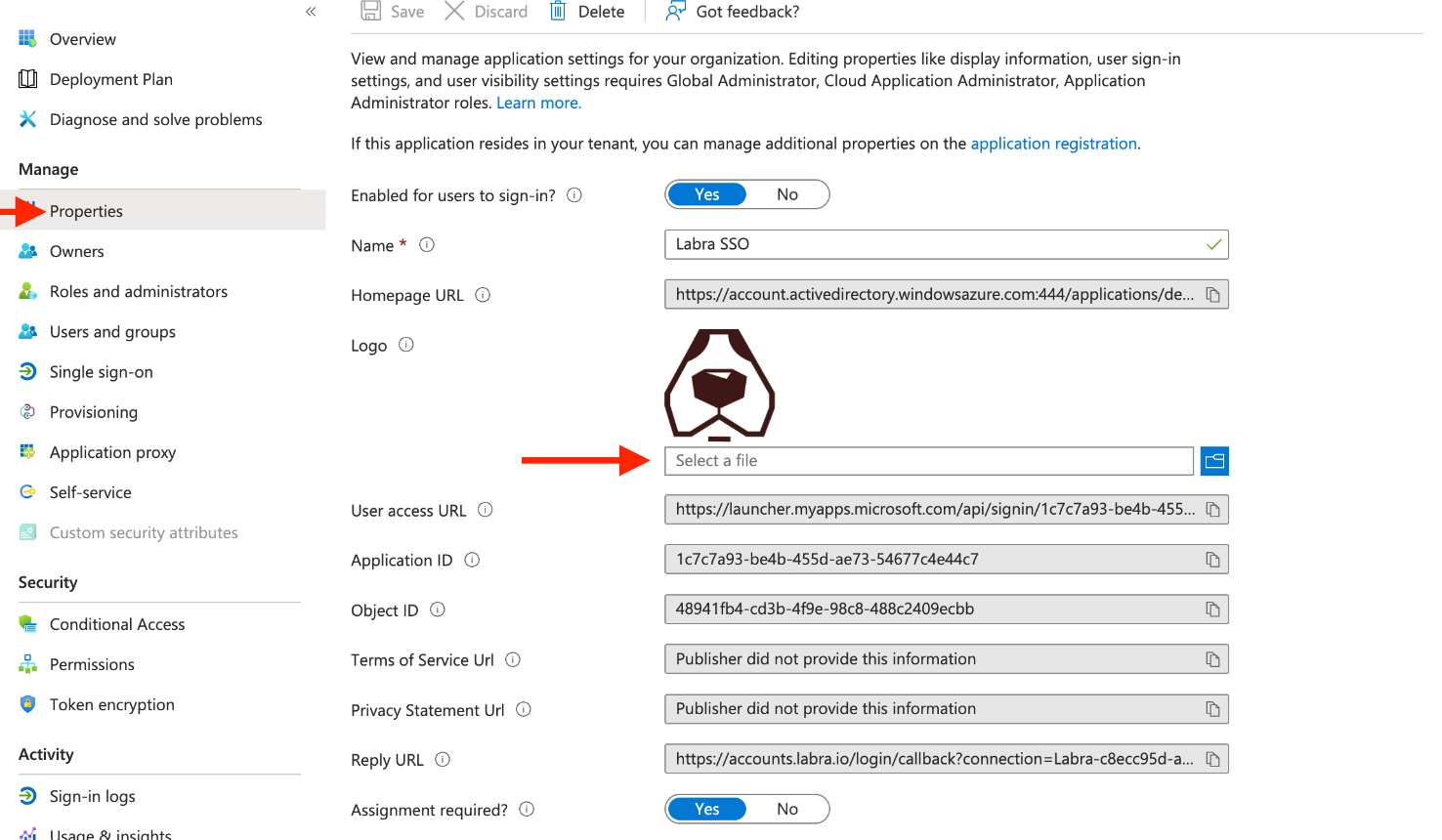

➡️  Step 16: To Update the logo of the app, go to the 'Properties' from the side panel. Then click on 'Select a file' on the logo section and upload.

Fig. 12

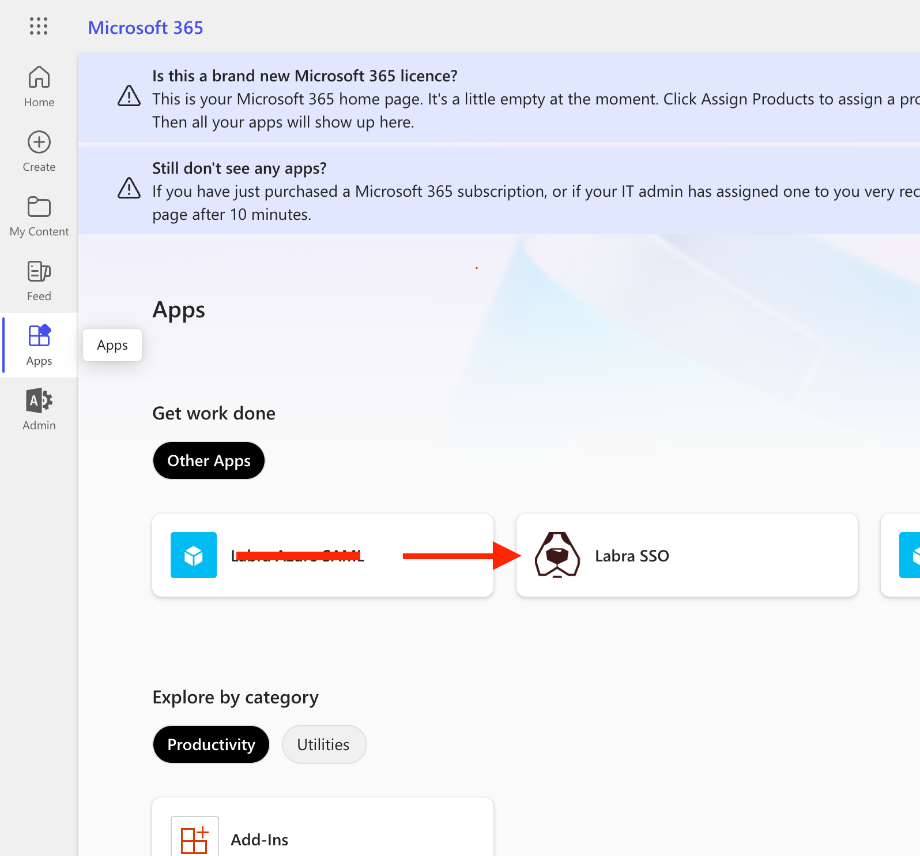

➡️  Step 17: Assigned users can find this app on their 'Apps' screen → 'All Apps'.

Fig. 13

➡️  Step 18: Upon clicking this, they will be navigated to the Labra platform.
